Disk Damper
Alternative central-drive disk damper configuration for higher-torque rotational control.
DQ47B / Disk Damper

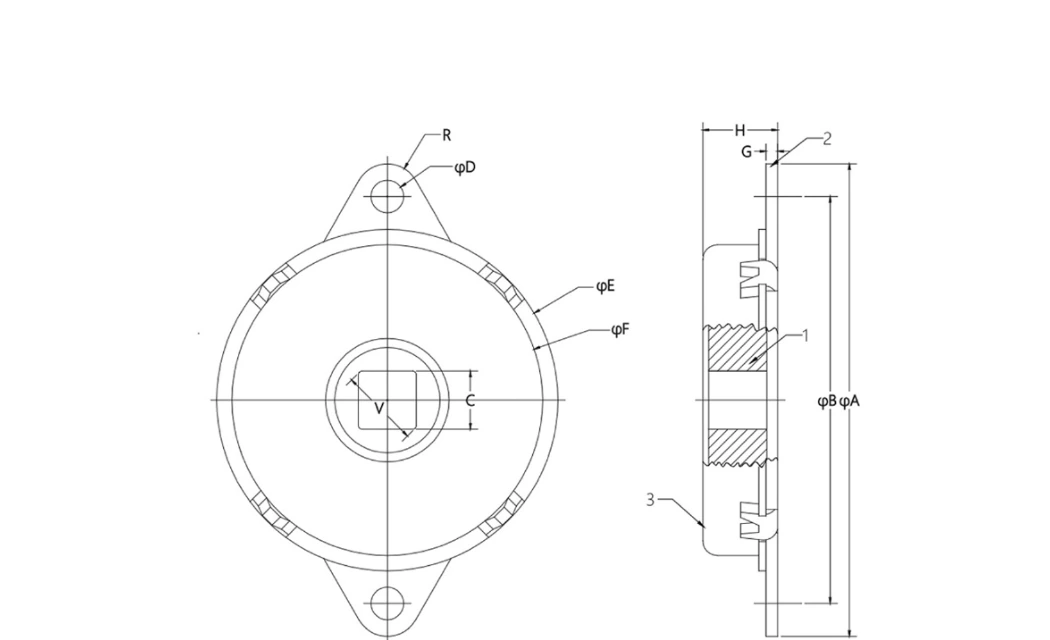

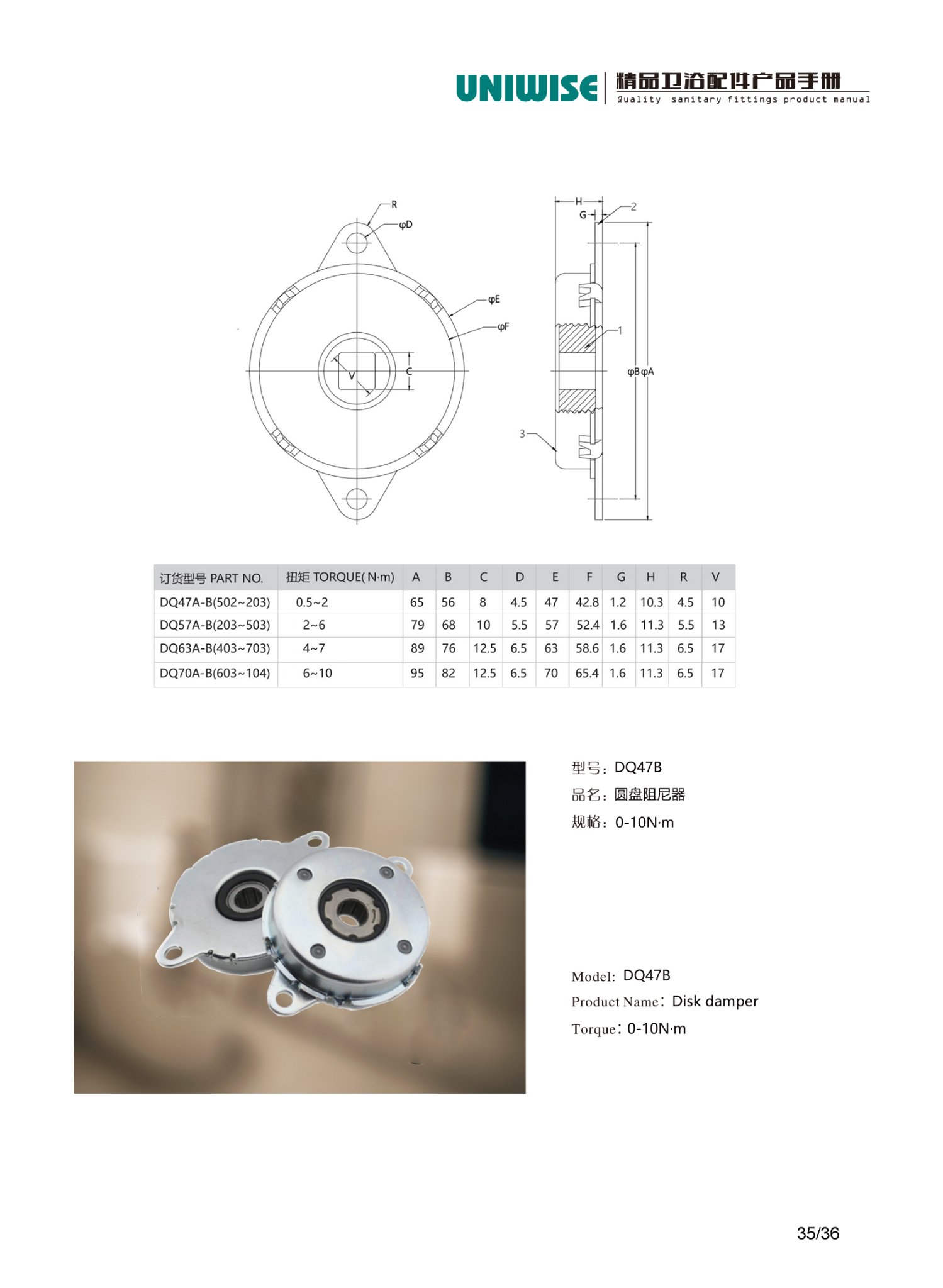

DQ47B is a disk damper for controlled movement. The published dimensional reference is Disk damper series Ø47 / Ø57 / Ø63 / Ø70 mm, with a torque range of Series variants 0.5–2 / 2–6 / 4–7 / 6–10 N·m. These catalogue values provide a starting point for selection; the result in an assembly also depends on the moving load and pivot geometry.
The listed rotation information is Bidirectional application matching. Compare the shaft or drive interface, available mounting space and operating angle with your design. Where more than one variant is available, confirm the required direction and torque before sample approval.
For a seat, lid or cover project, record the moving weight and its centre of gravity, then review the available space around the pivot. Confirm the selected direction and evaluate the closing movement in the actual assembly.
For a compact cover mechanism, compare the drive interface and mounting envelope first. Supporting hinges and mechanical stops should carry their intended functions; use a sample to assess the movement rather than inferring it from size alone.
Application examples illustrate selection considerations, not automatic compatibility or project qualification.
Send the model number, drawing and required quantity to our team.
