Adjustable covers and panels
Evaluate the resistance and movement feel across the intended angle. The load and centre of gravity can change the balance of the mechanism, so review both the opening and the return movement in a sample.
Positioning Damper
WW15H-360
Compact 360° positioning damper designed for free-stop movement at selected angles.
- Dimensions
- Ø15.4 mm body / 68.5 mm overall length
- Torque
- 0.07–0.15 N·m

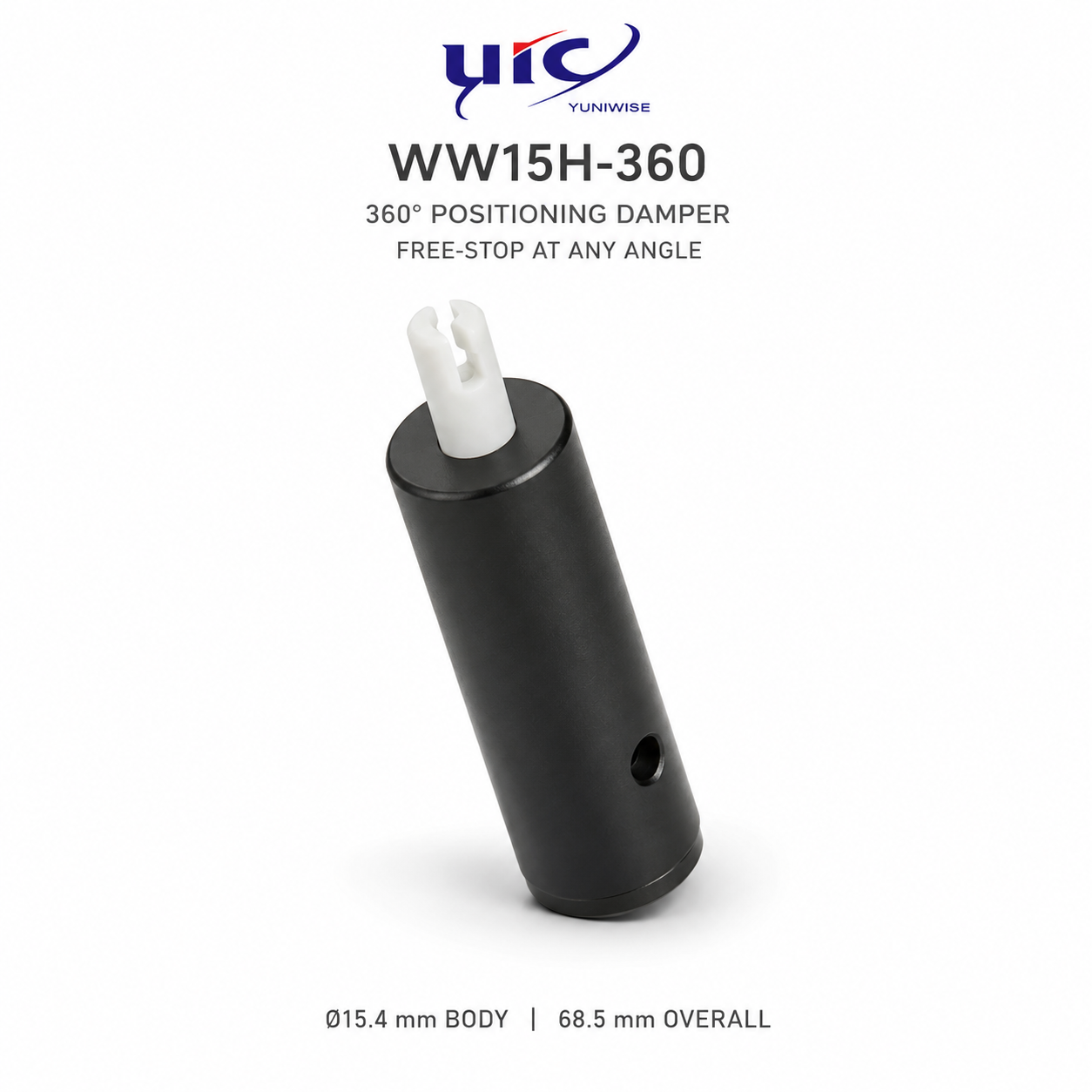

Product overview
WW15H-360 / Positioning Damper
Select the resistance for the position you need.
WW15H-360 is listed as a positioning damper. Its published dimensional reference is Ø15.4 mm body / 68.5 mm overall length, and the catalogue torque range is 0.07–0.15 N·m. Positioning resistance and soft-closing behaviour are different functions, so this model should be reviewed against the actual movement requirement.
Consider a positioning component where the application calls for resistance through movement or a particular positioning feel. The achievable behaviour depends on the load, lever arm and mechanism, and should be evaluated in the real assembly. Do not treat a positioning model as an automatic substitute for a soft-close component.
Selection notes
- Model and configuration: WW15H-360
- Dimensional reference: Ø15.4 mm body / 68.5 mm overall length
- Published torque: 0.07–0.15 N·m
- Rotation, load, mounting and sample acceptance
Application and installation
Compact equipment mechanisms
Check the component envelope and drive geometry against the equipment design. Discuss the operating angle and torque requirements before selecting the variant for evaluation.
Application examples illustrate selection considerations, not automatic compatibility or project qualification.
Product specifications

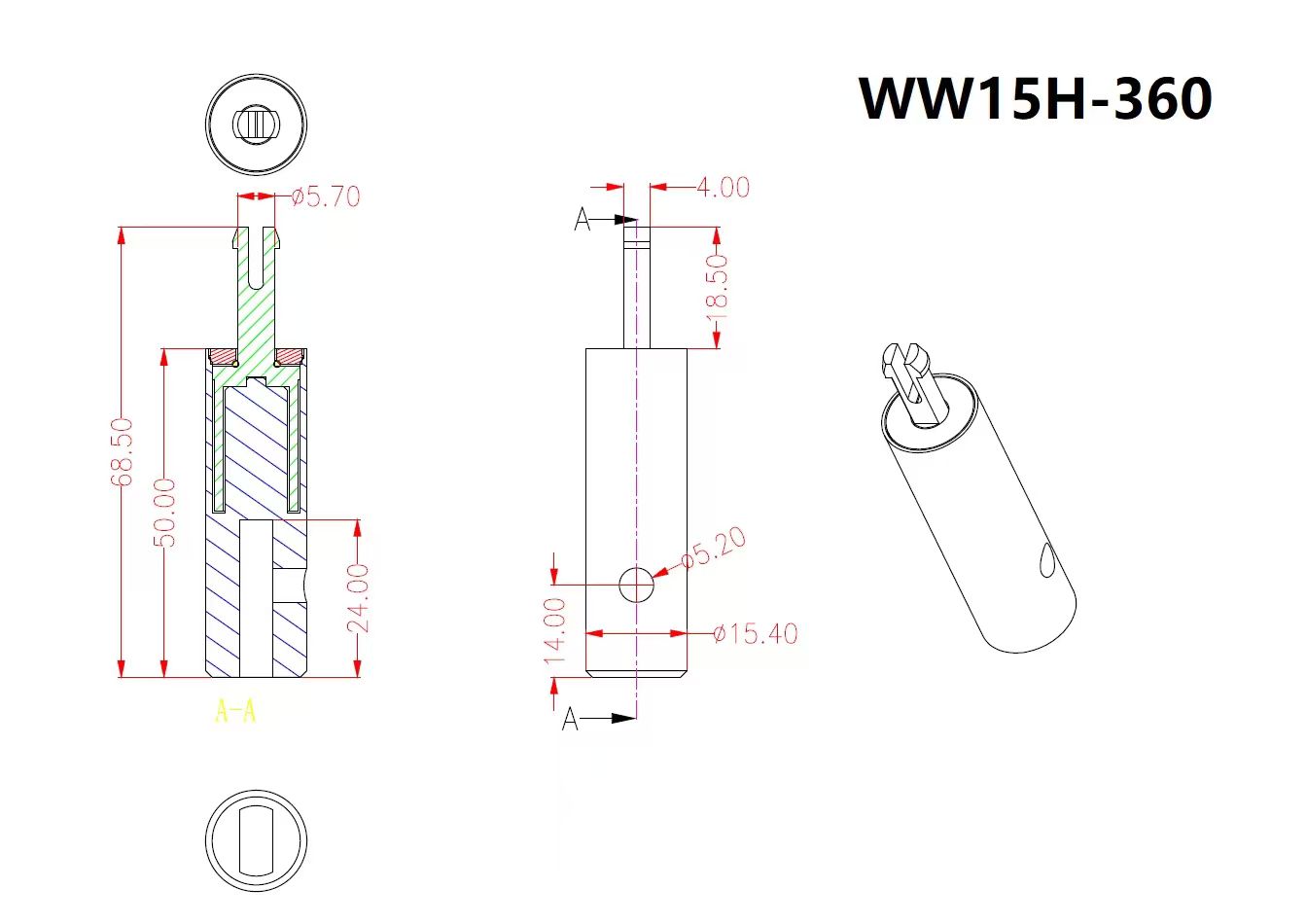

Drawings & product resources
