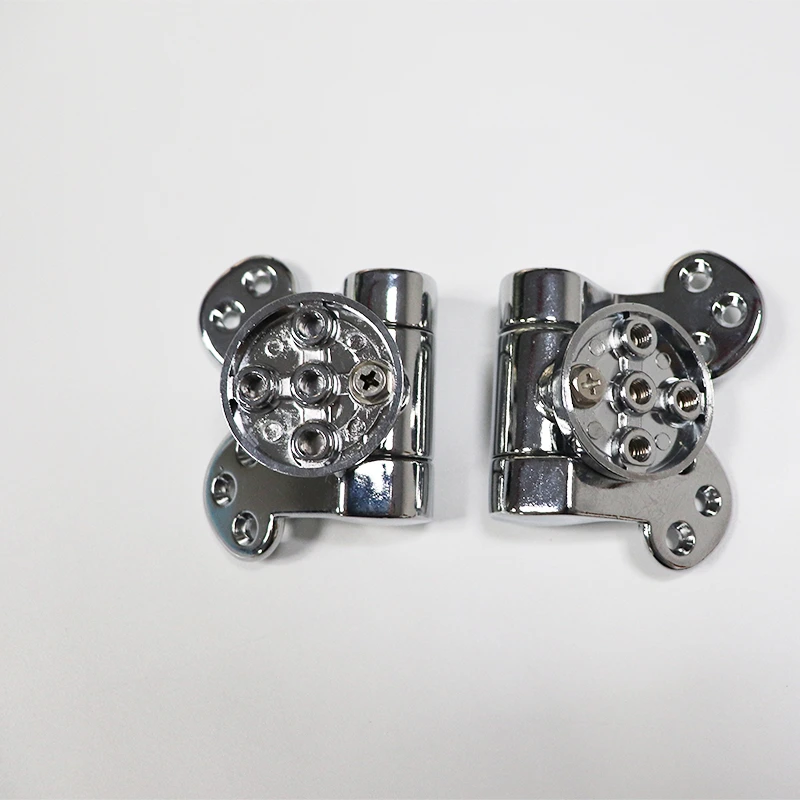

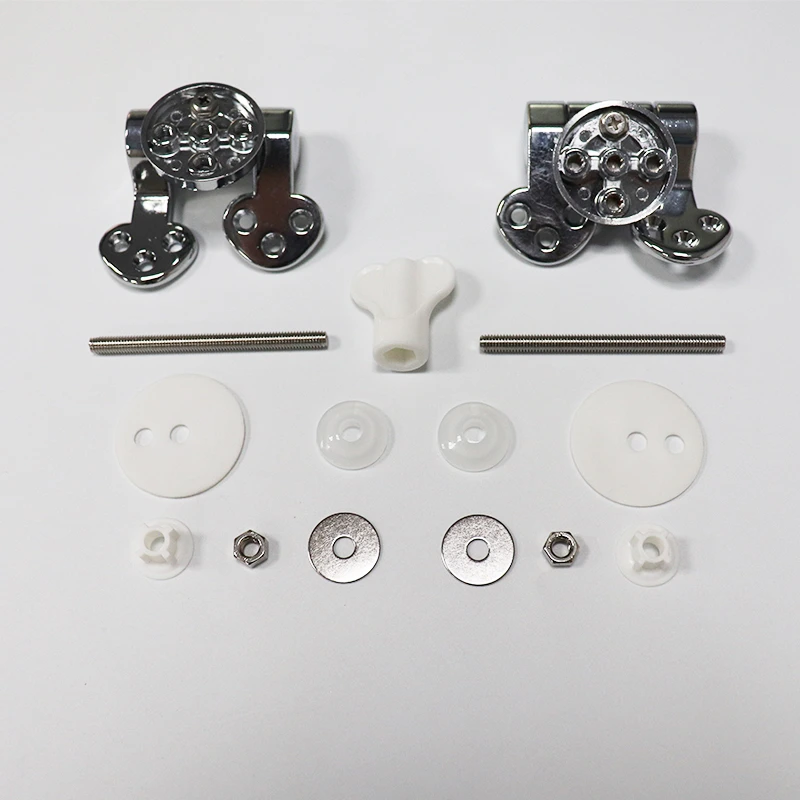

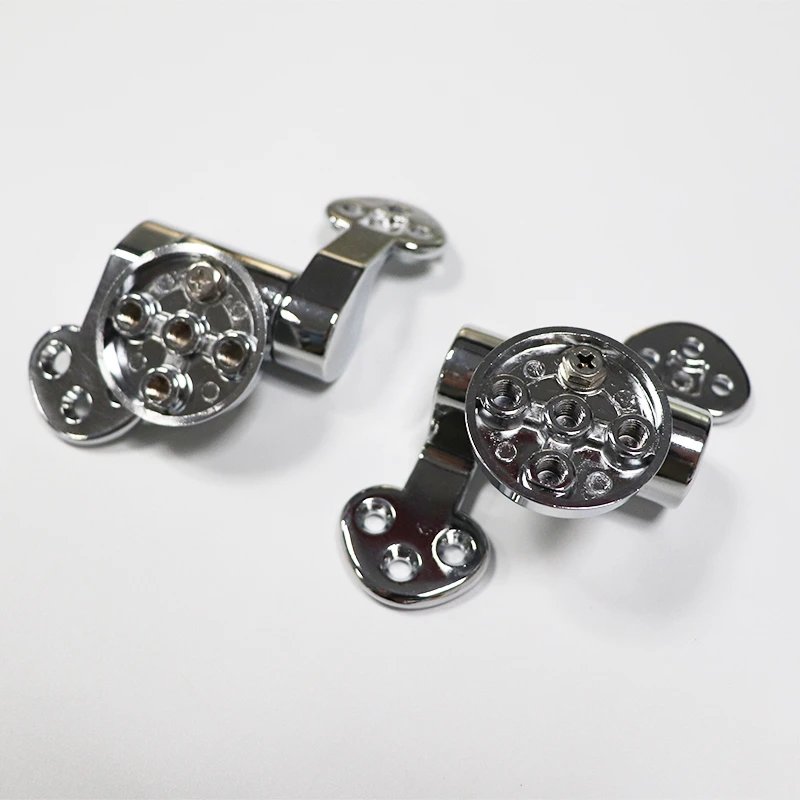

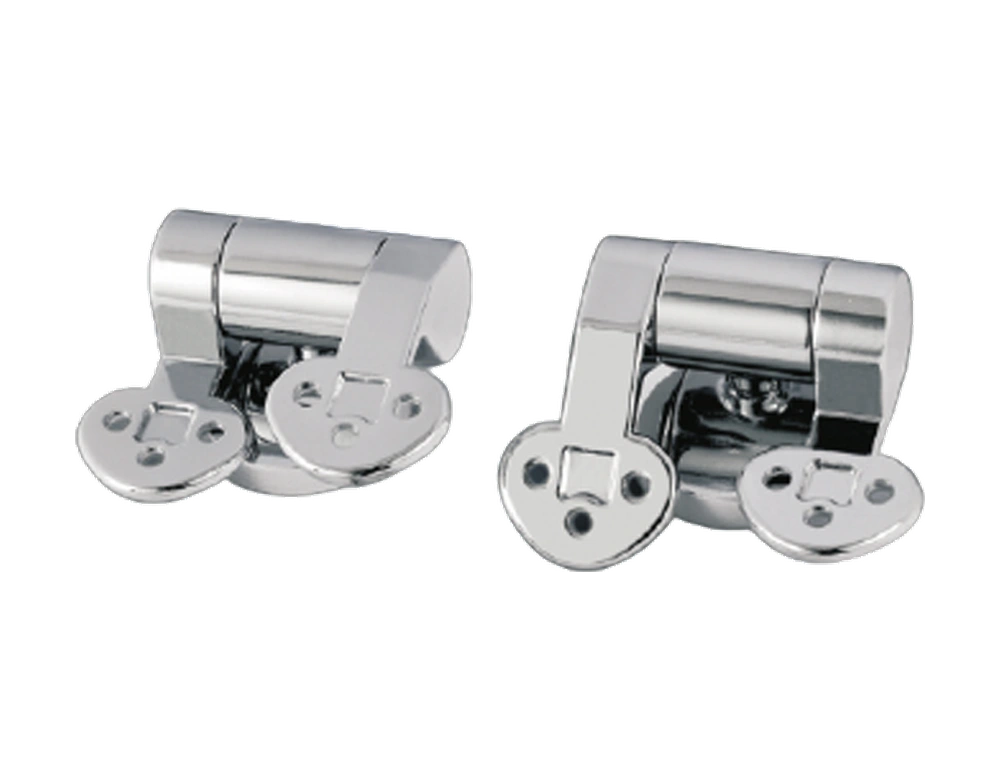

Soft-Close Hinge

BH23

Soft-close toilet seat hinge for controlled lid movement.

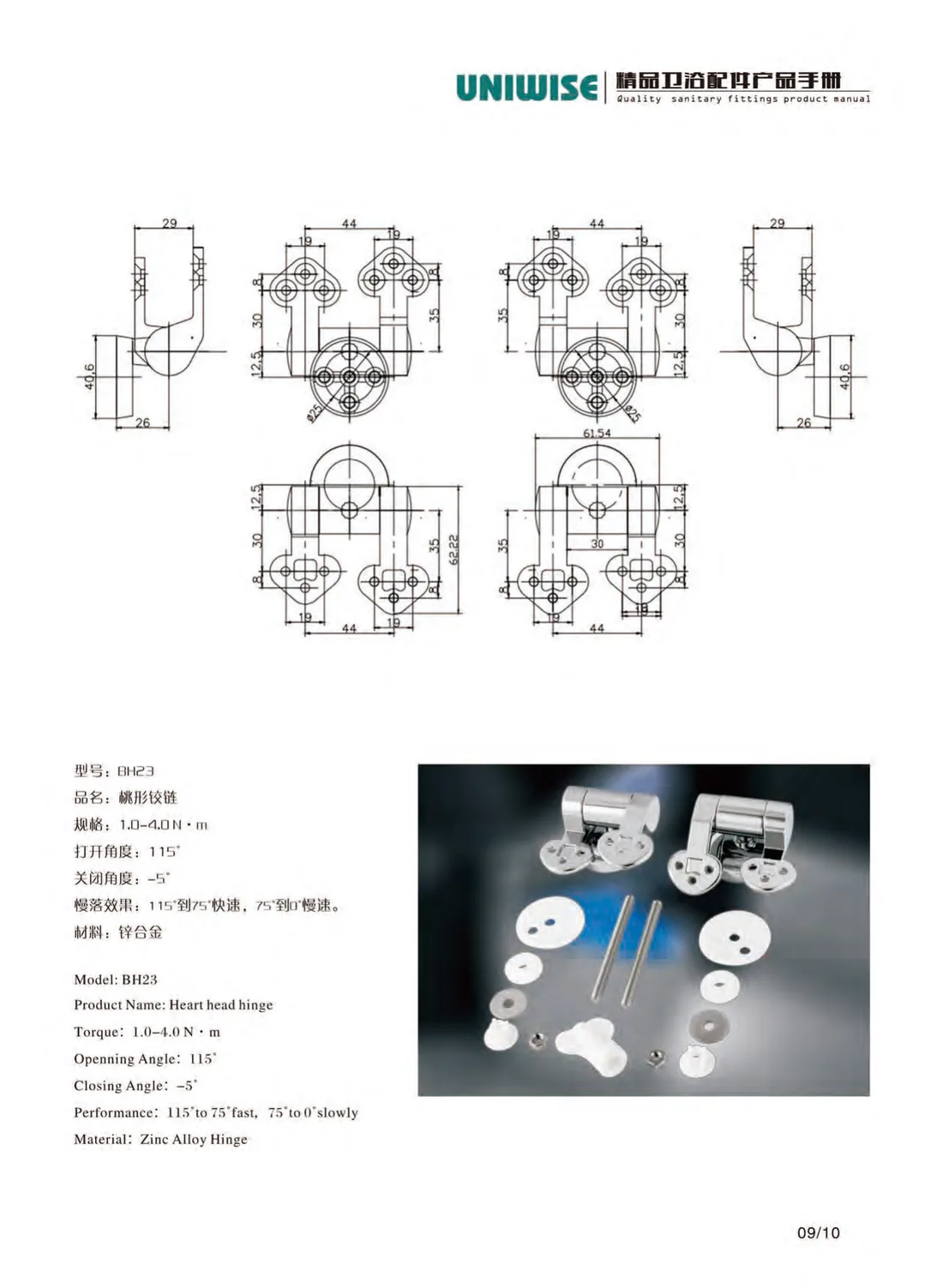

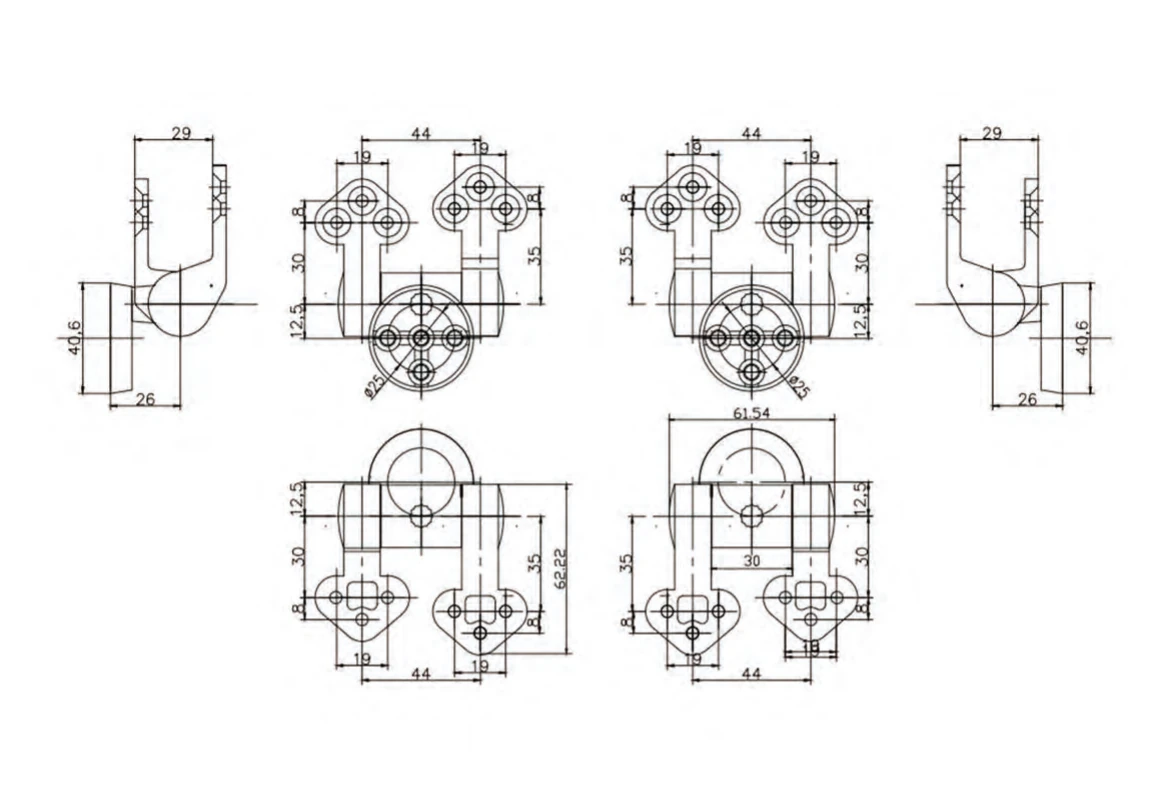

Dimensions: 61.54 mm assembly width / 62.22 mm overall height
Torque: 1.0–4.0 N·m

Product overview

BH23 / Soft-Close Hinge

The connection between the seat and the movement.

BH23 is a soft-close hinge in the UNIWISE component range. The published dimensional reference is 61.54 mm assembly width / 62.22 mm overall height, with a listed torque range of 1.0–4.0 N·m. Review these values together with the seat and lid geometry rather than selecting by appearance alone.

A hinge assembly has to coordinate with the bowl fixing arrangement, the seat structure and the intended release or closing function. Check access to the mounting points, clearance through the opening angle and the way the load is transferred into the hinge.

Selection notes

Model and configuration: BH23
Dimensional reference: 61.54 mm assembly width / 62.22 mm overall height
Published torque: 1.0–4.0 N·m
Rotation, load, mounting and sample acceptance

Application and installation

Toilet seat and cover assemblies

For a new seat design, compare the mounting arrangement and the interface to the seat. The assembled seat and lid should be sampled so the fixing, movement and user access can be reviewed together.

Component replacement and design updates

Record the current hinge envelope, fixing layout and load before proposing an alternative. A similar external form does not establish interchangeability; the mating parts and selected specification need checking.

Application examples illustrate selection considerations, not automatic compatibility or project qualification.
